  • JinKo Transparent Backsheet Mono Bifacial Solar Panel 182mm Solar Cell 565W 570W 575W Price by Lvchen Supplier

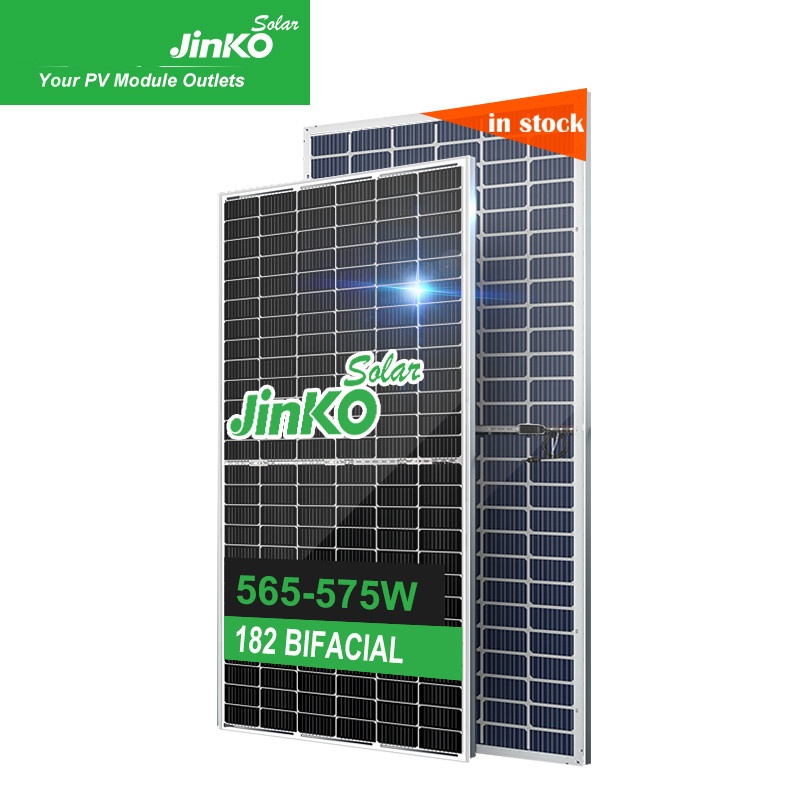

JinKo Transparent Backsheet Mono Bifacial Solar Panel 182mm Solar Cell 565W 570W 575W Price by Lvchen Supplier

JinKo Transparent Backsheet Mono Bifacial Solar Panel 182mm Solar Cell 565W 570W 575W Price by Lvchen Supplier

  • Product No.:JinKo Transparent Backsheet Mono Bifacial Solar Pa
  • Online Inquiry


Product Details
Mechanical Data
Module Dimensions
2411*1134*35mm
Weight
30.6kg
Junction-Box
IP 68 rated
Cables
4.0mm²
 Cell Orientation
156 cells(2*78)
Model
JKM565M-7RL4-TV
JKM570M-7RL4-TV
JKM575M-7RL4-TV
Max. Power (Pmax/W)
565
570
575
Open Circuit Voltage (Voc/V)
53.53
53.61
53.70
Short Circuit Current (Ios/A)
13.48
13.55
13.62
Max. Power Voltage (Vmp/V)
44.08
44.19
44.30
 Max. Power Current (Imp/A)
12.82
12.90
12.98
Efficiency² (%)
20.67
20.85
21.03
Bifacial Output-rearside Power Gain
5%
Max. Power (Pmax/W)
593
599
604
Efficiency² (%)
21.70
21.89
22.08
10%
Max. Power (Pmax/W)
650
656
661
Efficiency² (%)
23.76
23.98
24.19
15%
Max. Power (Pmax/W)
706
713
719
Efficiency² (%)
25.83
26.06
26.29
Original Manufacturer Files
JinKo Solar Genuine
Why Choose Us
First
Goldensolar is the agent of JinKo, JA Solar, LONGI, Canadian Solar, Trina Solar, Goodwe, Growatt, Sunshine, Jinlang, INVT, and is currently a multi-brand authorized distributor with a regular channel!
Second
Since the market price has been changing, the model of each component factory has been changing, we can choose the best brand, the best model, and the best price for you at the same time!
Third

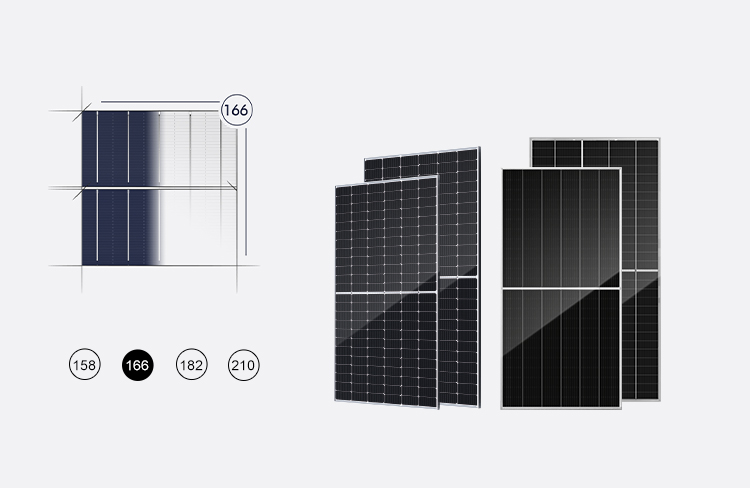

158,166,182,210, single-glass single-sided, double-glass double-sided, full range of shingled models, all available in stock!
