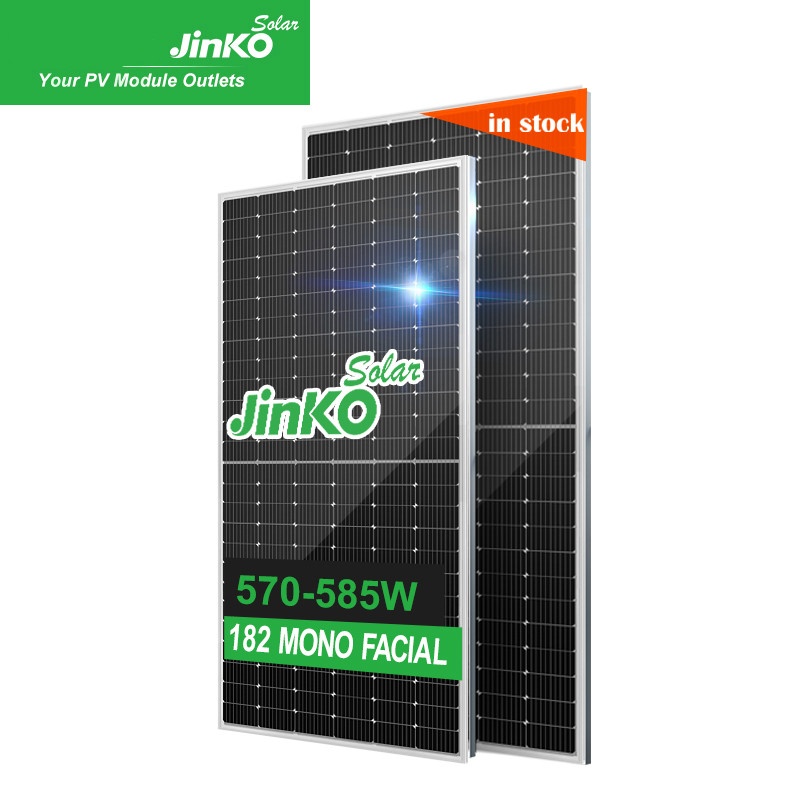

  • JinKo Mono Solar Panel 182MM Solar Cell 570W 575W 580W 585W Price by Lvchen Supplier
JinKo Mono Solar Panel 182MM Solar Cell 570W 575W 580W 585W Price by Lvchen Supplier

JinKo Mono Solar Panel 182MM Solar Cell 570W 575W 580W 585W Price by Lvchen Supplier

  • Product No.:JinKo Mono Solar Panel 182MM Solar Cell 570W 575W
  • Online Inquiry

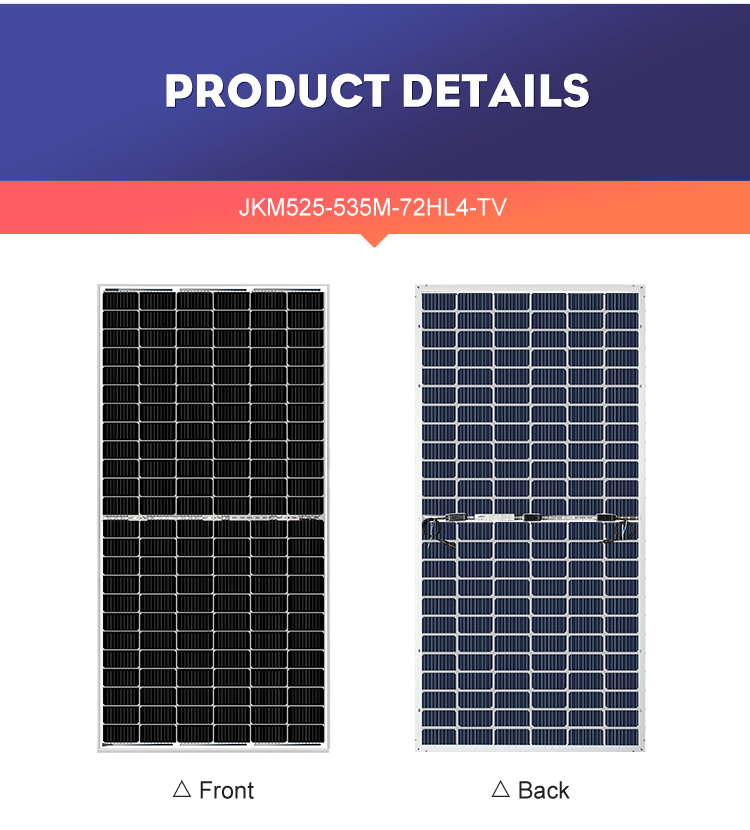

Product Details
Mechanical Data
Module Dimensions
2274*1134*35mm
Weight
28.9kg
Junction-Box
IP 68 rated
Cables
4.0mm²
 Cell Orientation
144 cells(6*24)
Model
JKM525M-72HL4-TV
JKM530M-72HL4-TV
JKM535M-72HL4-TV
Max. Power (Pmax/W)
525
530
535
Open Circuit Voltage (Voc/V)
49.27
49.35
49.42
Short Circuit Current (Ios/A)
13.64
13.71
13.79
Max. Power Voltage (Vmp/V)
40.61
40.71
40.81
 Max. Power Current (Imp/A)
12.93
13.02
13.11
Efficiency² (%)
20.36
20.55
20.75
Bifacial Output-rearside Power Gain
5%
Max. Power (Pmax/W)
551
557
562
Efficiency² (%)
21.38
21.58
21.78
10%
Max. Power (Pmax/W)
604
610
615
Efficiency² (%)
23.41
23.64
23.86
15%
Max. Power (Pmax/W)
656
663
669
Efficiency² (%)
25.45
25.69
25.93
Warehouse

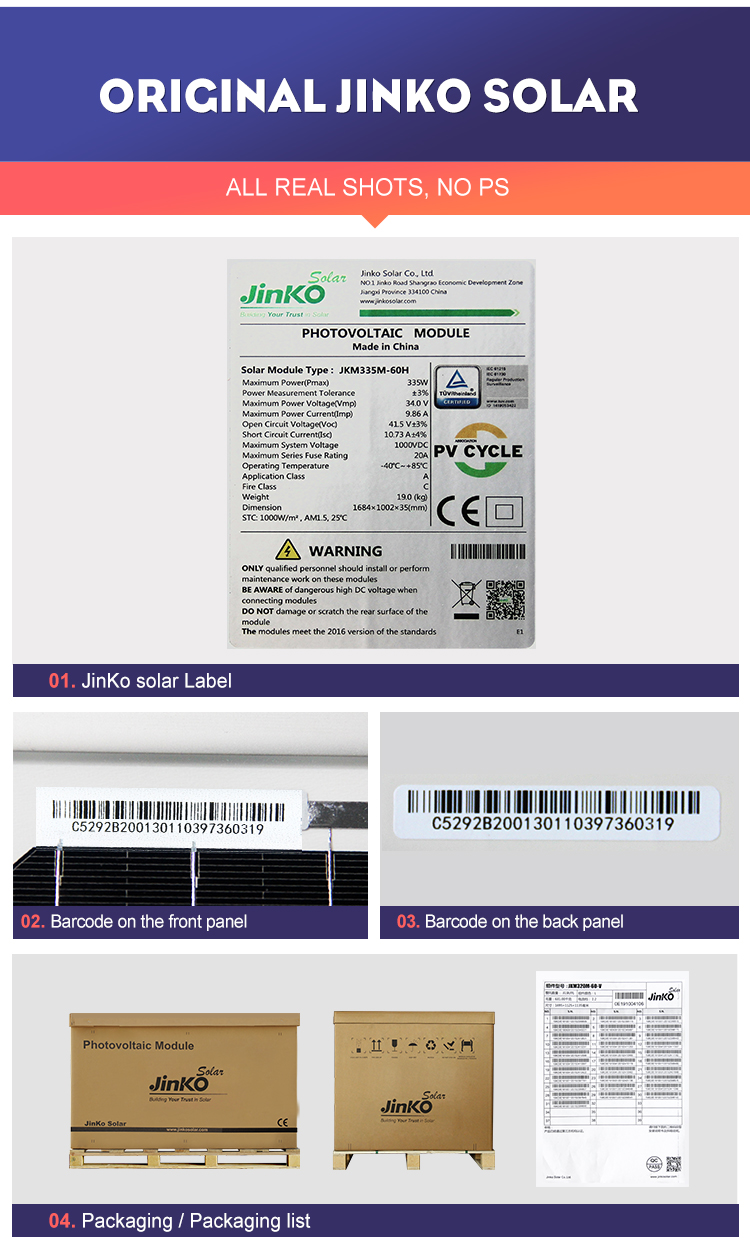

Original Manufacturer Files
JinKo Solar Genuine
Why Choose Us
First
Goldensolar is the agent of JinKo, JA Solar, LONGI, Canadian Solar, Trina Solar, Goodwe, Growatt, Sunshine, Jinlang, INVT, and is currently a multi-brand authorized distributor with a regular channel!
Second
Since the market price has been changing, the model of each component factory has been changing, we can choose the best brand, the best model, and the best price for you at the same time!
Third
158,166,182,210, single-glass single-sided, double-glass double-sided, full range of shingled models, all available in stock!
