Canadian 182 Single Series solar panel 530W 535W 540W 545W 550W with morego supply

Product No.：Canadian 182 Single Series solar panel 530W 535W 5
Online Inquiry

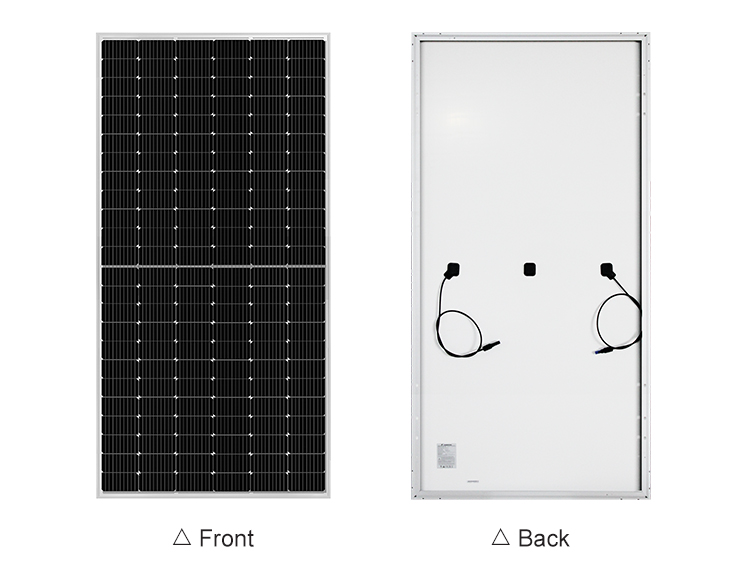

MECHANICAL SPECIFICATION
Format	2261mm x 1134mm x 30mm
Weight	27.8kg±3%
Cell	144 monocrystalline cells
Junction Box	IP68
Cable	4mm²

Nominal Max. Power (Pmax)	530W	535W	540W
Open Circuit Voltage (Voc)	48.8V	49.0V	49.2V
Short Circuit Current (Isc)	13.80A	13.85A	13.90A
Opt. Operating Voltage (Vmp)	40.9V	41.1V	41.3V
Opt. Operating Current (Imp)	12.96A	13.02A	13.08A
Module Efficiency	20.7%	20.9%	21.1%

PACKAGING
Model	CS6W-530-540 MS
Model per Pallet	30 pieces
Note: The above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.

First

Moregosolar is the agent of JinKo, JA Solar, LONGI, Canadian Solar, Trina Solar, Goodwe, Growatt, Sunshine, Jinlang, INVT, and is currently a multi-brand authorized distributor with a regular channel!

Second

Since the market price has been changing, the model of each component factory has been changing, we can choose the best brand, the best model, and the best price for you at the same time!

Third

158,166,182,210, single-glass single-sided, double-glass double-sided, full range of shingled models, all available in stock!
