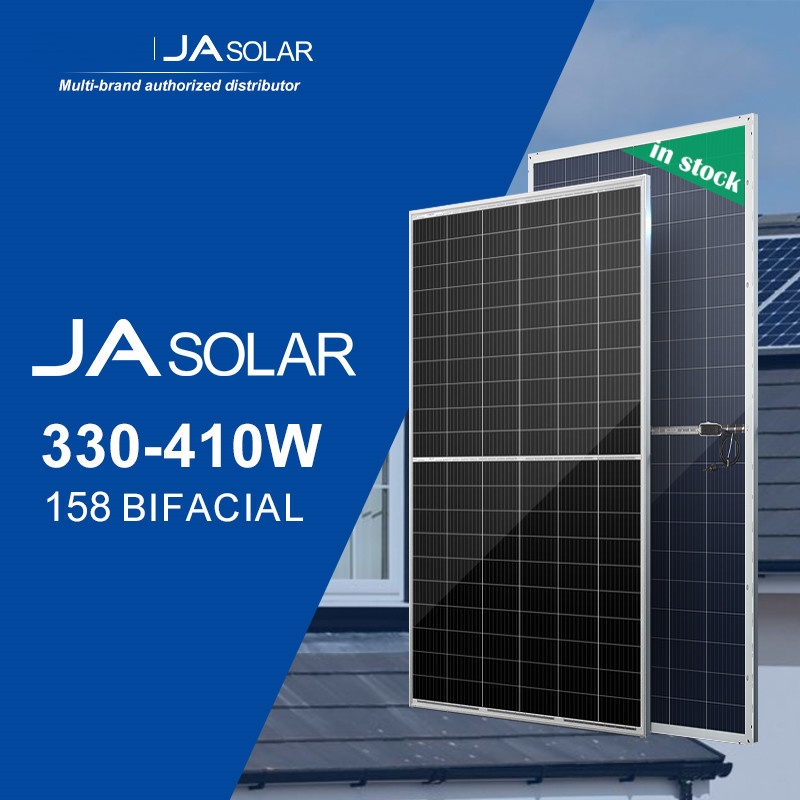

JA solar 158 Double Series Solar panel 330W 335W 340W Price Solar mono panels 400W 405W 410W cost with morego supply

Product No.：JA solar 158 Double Series Solar panel 330W 335W 3
Online Inquiry

MECHANICAL SPECIFICATION
Format	1711mm x 1005mm x 30mm
Weight	22.0kg±3%
Cell	120 monocrystalline cells
Junction Box	IP68
Cable	4mm²

Nominal Max. Power (Pmax)	330W	335W	340W
Open Circuit Voltage (Voc)	41.1V	41.38V	41.65V
Short Circuit Current (Isc)	10.10A	10.17A	10.25A
Opt. Operating Voltage (Vmp)	34.82V	35.08V	35.35V
Opt. Operating Current (Imp)	9.48A	9.55A	9.62A
Module Efficiency	19.2%	19.5%	19.8%

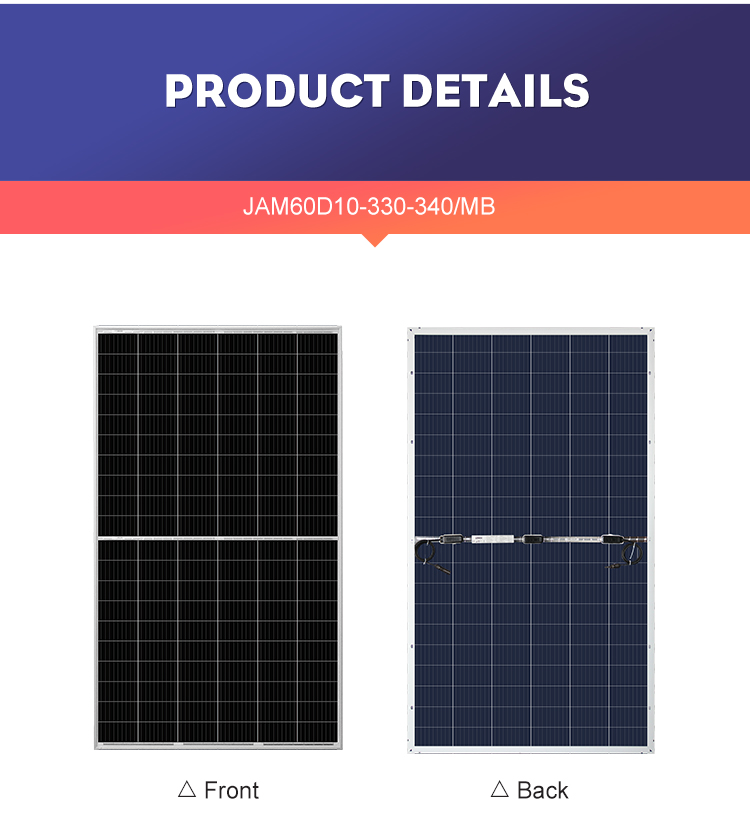

Reference To 340W Front
Backside Power Gain	5%	10%	15%	20%	25%
Nominal Max. Power (Pmax)	357W	374W	391W	408W	425W
Open Circuit Voltage (Voc)	41.65V	41.65V	41.65V	41.75V	41.75V
Short Circuit Current (Isc)	10.76A	11.28A	11.79A	12.30A	12.81A
Opt. Operating Voltage (Vmp)	35.35V	35.35V	35.35V	35.45V	35.45V
Opt. Operating Current (Imp)	10.10A	10.58A	11.06A	11.51A	11.99A

First

Goldensolar is the agent of JinKo, JA Solar, LONGI, Canadian Solar, Trina Solar, Goodwe, Growatt, Sunshine, Jinlang, INVT, and is currently a multi-brand authorized distributor with a regular channel!

Second

Since the market price has been changing, the model of each component factory has been changing, we can choose the best brand, the best model, and the best price for you at the same time!

Third

158,166,182,210, single-glass single-sided, double-glass double-sided, full range of shingled models, all available in stock!
